Product Description

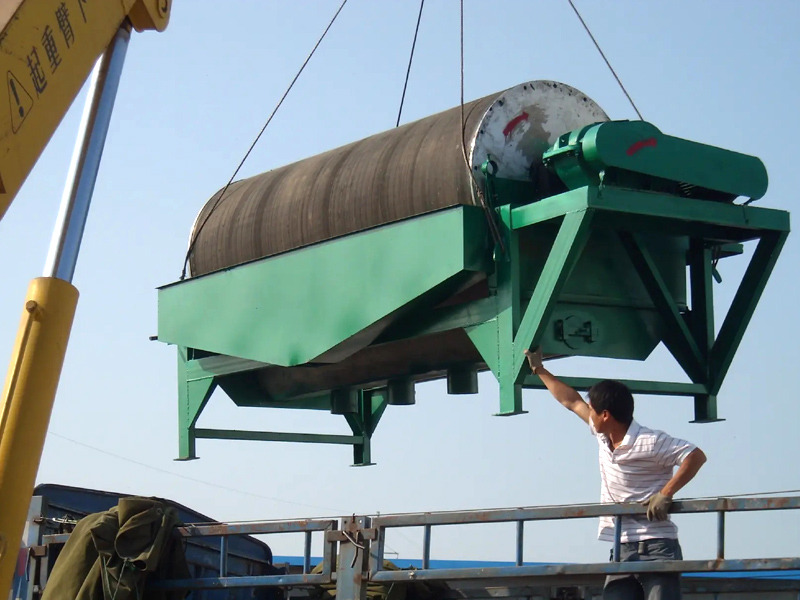

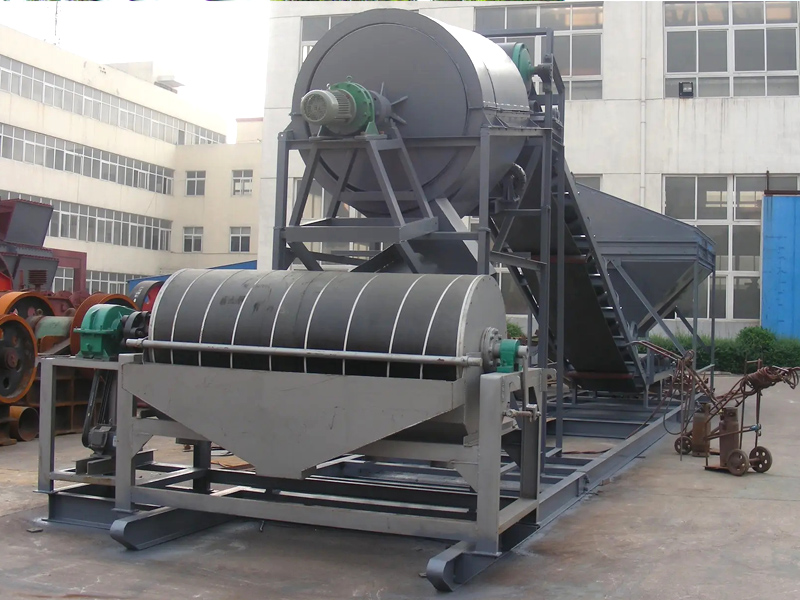

Magnetic separator is an important equipment in the mineral processing production line. It can effectively remove iron powder from the recycled powder particles. The equipment is widely used in resource recovery, wood industry, mining industry, kiln industry, chemical industry, food industry and other industries. It can not only be used for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with a particle size of less than 3mm, but also can be used for iron removal of coal, non-metallic minerals, building materials and other materials. It is one of the most widely used and versatile machines in the industry.
Product Performance
- 1High-efficiency magnetic separation
The magnetic separator has a high-efficiency magnetic separation function, which can quickly separate impurities containing ferromagnetic substances and improve the purity and quality of materials.
- 2Energy saving and environmental protection
Compared with traditional material separation methods, the magnetic separator does not need to consume a lot of energy and chemicals, thus saving energy and protecting the environment.
- 3Easy to operate
The magnetic separator is easy to operate. You only need to follow the steps in the manual to ensure the normal operation of the equipment.
- 4Wide application
The magnetic separator can be used in mining, chemical industry, metallurgy, building materials, light industry and other industries, and can separate most of the iron-containing substances, with high practicality and economy.
Working Principle
After the ore slurry tank, the water sprayed under the influence of the mineral particles into the cabinet, the mine water pipeline is in a loose state. Under the action of the magnetic field, the magnetic particles of the magnetic mine gather to form a "magnetic group" or "magnetic chain". The "magnetic group" or "magnetic chain" moves under the action of the magnetic force of the pulp, and these are adsorbed on the cylinder. As the magnetic polarity is alternately arranged along the rotation direction of the cylinder, and the "magnetic group" or "magnetic chain" is fixed at work and changes with the drum speed, due to the electromagnetic stirring magnetic poles generated by the magnetic separator alternately from the phenomenon, the gangue and other non-magnetic minerals in the "magnetic group" or flip "magnetic chain" take off downward, and finally are sucked on the inner surface of the cylinder as a "magnetic group" or "magnetic lotus", that is, concentrated. The magnetic system is concentrated to the cylinder with weaker magnetic force at the edge, and unloaded in the exhaust pipe of the unloading ore, and the magnetic separator is unloaded according to the concentrated action of the washing water. The non-magnetic or weakly magnetic minerals are discharged from the fuel tank outside the pulp, which is the tailings.
Technical Parameters
| Model | Drum diameter (mm) | Drum length (mm) | Drum speed (r/min) | Feeding particle size (mm) | Processing capacity (t/h) | Power (kw) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
