Product Description

The ball mill is a key equipment for crushing materials after they are broken. The most important equipment in the preparation of raw materials for aerated concrete is the ball mill, which is used to grind materials such as lime, gypsum, sand, slag, etc. Only after the materials are ground to the required fineness can they be fully mixed and interacted, and the product can reach the strength. Grinding is an important procedure in the production of aerated concrete. The grinding process consumes a lot of electricity. The ball mill is generally a device with a large motor capacity in the aerated concrete plant.

Product Performance

Working Principle

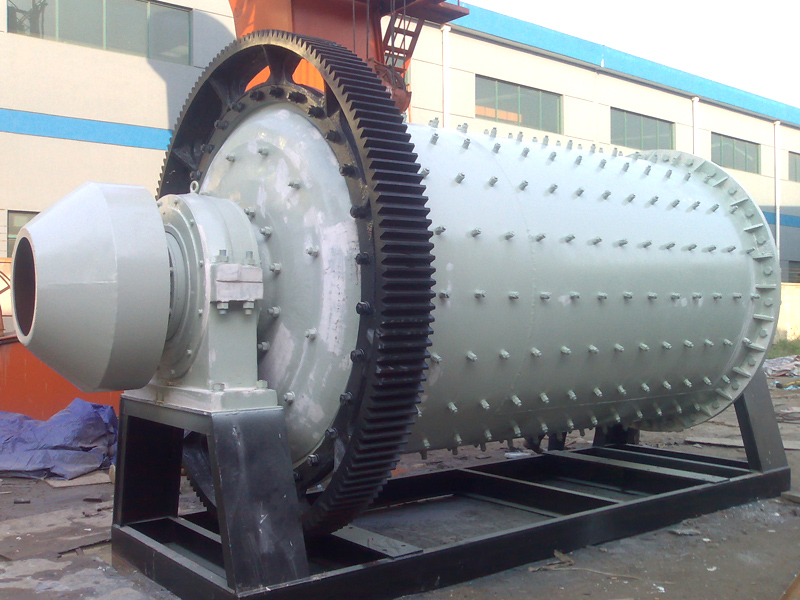

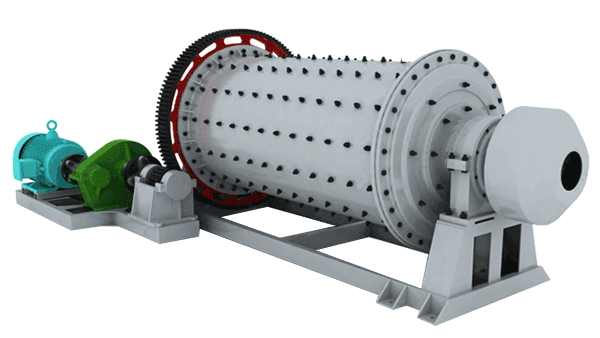

The ball mill is a horizontal cylindrical rotating device with gear transmission on the outside. The material is fed into the mill chamber evenly through the feeding device through the hollow feeding shaft spiral. The chamber has a stepped lining or corrugated lining, which contains steel balls of different specifications. The centrifugal force generated by the rotation of the cylinder brings the steel balls to a certain height and then falls, which produces a heavy impact and grinding effect on the material. After the material is roughly ground in the first chamber, it enters the second chamber through a single-layer partition plate. The chamber is inlaid with a flat lining plate and contains steel balls to further grind the material. The powder is discharged through the discharge grate plate to complete the grinding operation.

Technical Parameters
