Product Description

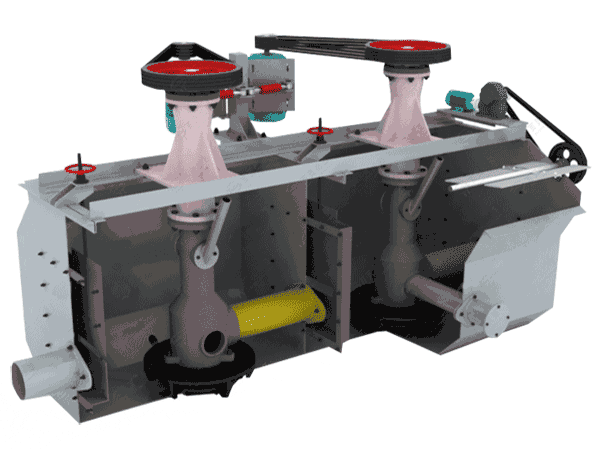

The flotation machine is one of the equipment used to separate minerals in the mineral processing plant. During the flotation process, suitable mineral processing agents need to be added to the slurry, and after aeration and stirring, the mineral particles are selectively attached to the bubbles and then rise to achieve separation between minerals. When selecting equipment, you should first determine the type, specifications, quantity, etc. of the flotation machine, which are related to the properties of the raw ore (density, particle size, grade, floatability, mud content), flotation machine performance, ore dressing plant scale, flotation It is all related to the beneficiation process, etc. In actual work, mineral processing tests should be carried out first, and the selection should be carried out according to the needs.
Product Performance
- 1Double-blade circulation, good flotation effect
The impeller of the flotation machine is equipped with backward-inclined double-sided leaves, which can realize double circulation of the slurry in the tank , which is beneficial to the suspension of coarse minerals.
- 2Horizontal configuration, easy process change
Each tank has three functions of air suction, slurry suction and flotation. It has its own flotation circuit and does not require Any auxiliary equipment can be configured horizontally to facilitate process changes.
- 3Large air suction volume, low energy consumption
Mechanical stirring, self-priming, self-priming slurry; the gap between the impeller and the cover plate is large, and the air suction Large quantity and low energy consumption.
- 4The wearing parts are wear-resistant and have low maintenance costs
The impeller has a low peripheral speed and the wearing parts have a long life; Wear-resistant parts effectively protect the tank body from wear and lower maintenance costs.
Working Principle
Add water and necessary chemicals to the ground ore during or after grinding to form a slurry in a mixing tank, then pour it into the slurry tank where the stirring begins, and introduce air into the slurry to form a large number of bubbles. Mineral particles that are not easily wetted by water, generally called hydrophobic, adhere to the bubbles and float to the surface of the slurry together with the bubbles to form a mineralized bubble layer. Others that are easily wetted by water are generally called hydrophilic. The mineral particles do not attach to the bubbles, but remain in the slurry, and the mineralized bubbles containing specific minerals are discharged, thereby achieving the purpose of mineral processing.
Technical Parameters
| 类别 | Model | Effective volume (m³) | Processing capacity (m³/min) | Spindle scraper | Trough body size (length × width × height) (m) | Single slot weight (t) | |||
| Power (kw) | Rotational speed (r/min) | Rotational speed (r/min) | Power (kw) | ||||||
| XJK type flotation machine | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 | 0.5 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.90×0.82×0.85 | 1 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1 | 1.4 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | 2.5 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×1.2 | 3.6 | |
| SF型浮选机 | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 | 0.5 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | 1 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | 1.9 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | 2.6 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×1.2 | 2.9 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | 4.2 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | 4.5 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2 | 9.9 | |
| JJF型浮选机 | JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 | 1.7 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | 2.4 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | 4.5 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | 4.9 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | 8 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×2.0 | 10.5 | |
