Product Description

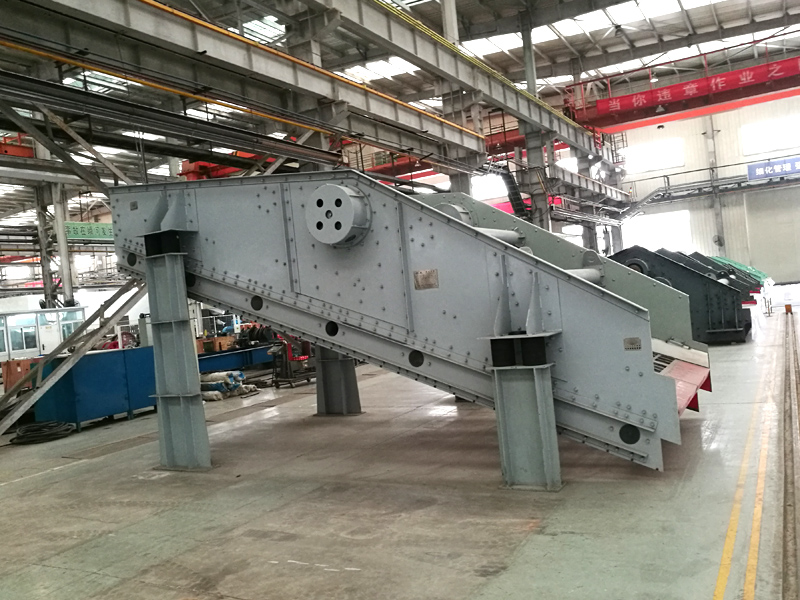

The circular vibrating screen is a new type of vibrating screen with circular vibration and multiple layers. The cylindrical eccentric shaft vibrator and eccentric block are used to adjust the amplitude. The material screening flow line is long and the screening specifications are various. It has the characteristics of simple structure, reliable excitation structure, high screening efficiency, low vibration noise, and durability. It is suitable for Various screening operations including heavy, medium and fine screening.
Product Performance
- 1Reasonable structure and stable production
The novel sealing structure, fully enclosed oil bath transmission device, and adjustable overflow weir plate ensure that this series The product is durable, has good cleaning and dehydration effects, and keeps fine-grained products stable.
- 2Scientific design and low failure rate
This machine adopts an impeller drive bearing device designed to be separated from water and materials to avoid premature rusting of the machine due to contamination. The damage caused by the sand washing machine makes its failure rate much lower than that of other commonly used sand washing machines.
- 3Fewer wearing parts and low cost of use
Except for the screen, this machine has almost no wearing parts and rarely requires maintenance, so it can Greatly reduce usage costs.
- 4Low loss, high purity, and up to standard gradation
The washed materials have high cleanliness and no pollution, with very little loss of medium-fine sand and stone powder , the gradation and fineness modulus of the washed construction sand meet the national standards of "Sand for Construction" and "Pebbles and Gravel for Construction".
Working Principle
In a circular vibrating screen, it is mainly composed of a screen box, a vibrator, a screen surface, etc. The vibrator is installed at the lower part of the screen machine box through the motor and vibrator, and the vibrator is linked with the screen surface through the shaft. The motor drives the vibrator to rotate, producing arc vibration, causing the materials to rub on the screen surface to achieve the purpose of screening.

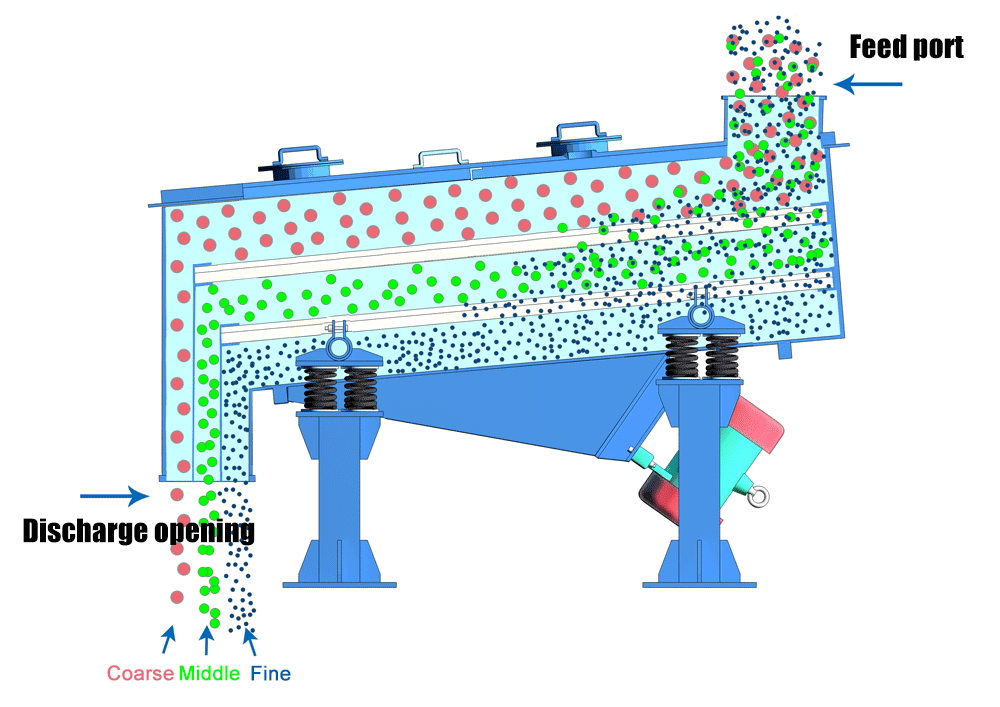

The screen surface of the circular vibrating screen adopts multi-layer mesh, which is screened layer by layer according to the particle size. After the material is put into the circular vibrating screen, with the movement of the vibrator, the material will continuously roll and bounce on the screen surface to achieve the purpose of screening. During the screening process, through constant friction and impact, large particles of material will gradually move outward on the screen surface, while small particles of material will gradually move downward through the gaps in the screen.
Technical Parameters
| Model | Screen surface specifications W×L(mm) | Number of screen layers | Inclination angle ( °) Recommendation (range) | Number of vibrations (RPM) | Double amplitude (mm) | Power (kw) | Production capacity (t/h) | Mesh size (mm) |
| S5X1845-2 | 1800×4500 | 2 | 18(18-25) | 800～900 | 7-12 | 15 | 60-450 | 2-70 |
| S5X1845-3 | 3 | 18(18-25) | 800～900 | 7-12 | 22 | 60-450 | 2-70 | |
| S5X1860-2 | 1800×6000 | 2 | 18(18-25) | 800～900 | 7-10 | 15 | 75-600 | 2-70 |
| S5X1860-3 | 3 | 18(18-25) | 800～900 | 7-12 | 30 | 75-600 | 2-70 | |
| S5X1860-4 | 4 | 18(18-25) | 800～900 | 7-12 | 37 | 75-600 | 2-70 | |
| S5X2160-2 | 2100×6000 | 2 | 18(18-25) | 800～900 | 7-12 | 22 | 85-700 | 2-70 |
| S5X2160-3 | 3 | 18(18-25) | 800～900 | 7-12 | 30 | 85-700 | 2-70 | |
| S5X2160-4 | 4 | 18(18-25) | 800～900 | 7-11 | 37 | 85-700 | 2-70 | |
| S5X2460-2 | 2400×6000 | 2 | 18(18-25) | 800～900 | 7-12 | 22 | 100-800 | 2-70 |
| S5X2460-3 | 3 | 18(18-25) | 800～900 | 7-11 | 30 | 100-800 | 2-70 | |
| S5X2460-4 | 4 | 18(18-25) | 800～900 | 7-10 | 37 | 100-800 | 2-70 | |
| S5X2760-2 | 2700×6000 | 2 | 18(18-25) | 800～900 | 7-12 | 30 | 120-900 | 2-70 |
| S5X2760-3 | 3 | 18(18-25) | 800～900 | 7-11 | 37 | 120-900 | 2-70 | |
| S5X3072-2 | 3000×7200 | 2 | 20(20-25) | 800～900 | 7-11 | 37 | 150-1200 | 2-70 |
| S5X3075-2T | 3000×7500 | 2 | 20(20-25) | 800～900 | 7-12 | 2×22 | 180-1800 | 2-150 |
| S5X3075-3T | 3000×7500 | 3 | 20(20-25) | 800～900 | 7-12 | 2×30 | 180-1800 | 2-150 |
| S5X3680-2T | 2 | 20(20-25) | 800～900 | 7-12 | 2×30 | 225-2250 | 2-150 | |
| S5X3680-3T | 3600×8000 | 3 | 20(20-25) | 800～900 | 7-12 | 2×37 | 225-2250 | 2-150 |
CaseMore

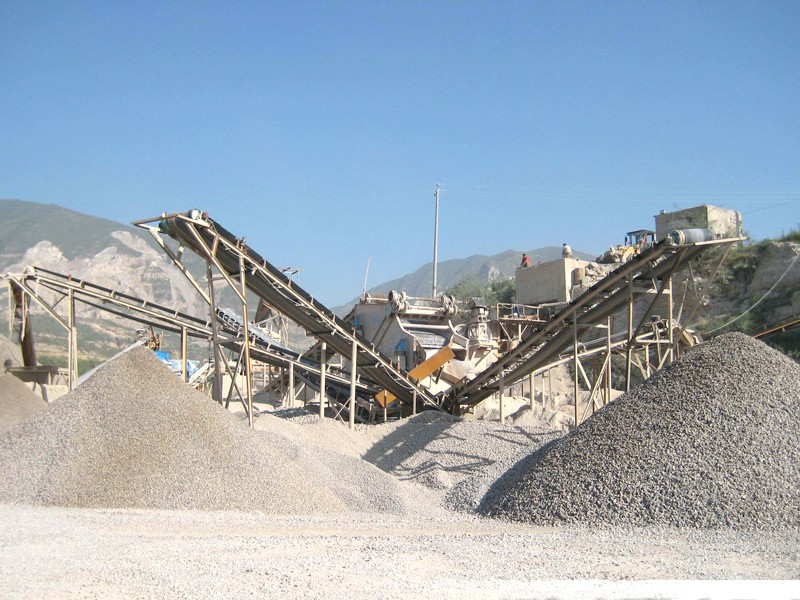

iron ore beneficiation production line
