Case introduction

Material introduction: As a pure natural stone, river pebbles have a comprehensive hardness above 7 degrees on the Mohs scale and a compressive strength of over 300MPa. It has the characteristics of pressure resistance, wear resistance, and corrosion resistance, making it an ideal mechanism for users. Sand raw material, and stone is widely distributed, rich in resources, low in collection cost and high in application value. If natural river pebbles are processed into river pebble sand through a series of processes such as crushing, sand making, and screening, it can provide high-quality mineral raw materials for various infrastructure construction projects and is widely used.

Case advantages

1. The entire sand making production line is reasonably configured and has a high degree of automation. Only the material loading and power switch control require personnel to take care of. There is no need for redundant labor input in other places and the cost is low;

2. The river pebbles processed by the sand making production line have uniform particles and good particle shape, and meet the national construction sand standards;

3. There is little dust pollution during the entire sand making process, which complies with green sand making standards.

Production Process

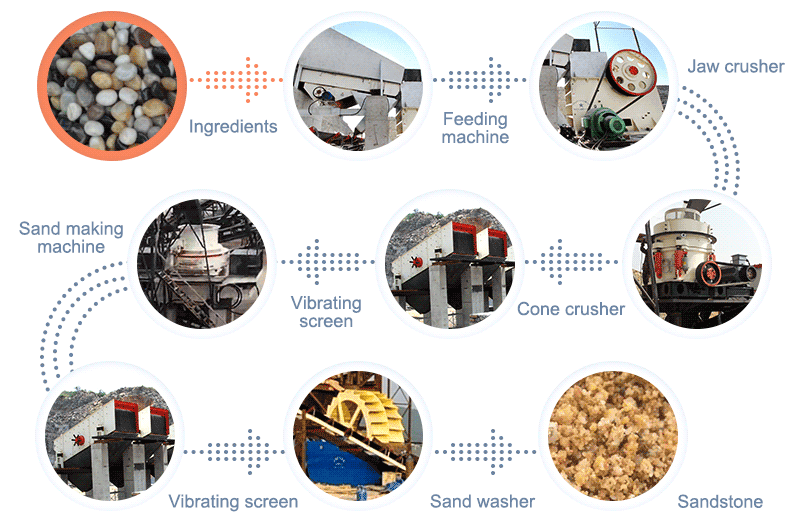

Large pieces of river pebbles are evenly sent to the jaw crusher for coarse crushing through the vibrating feeder. The coarsely crushed stone is sent to the impact crusher or cone crusher for intermediate crushing through the belt conveyor. The crushed stone is sent to the vibrating screen by the belt conveyor for screening, and the finished sand (under the screen) is sent to the sand washing machine by the belt conveyor and then sent to the finished product pile through the belt conveyor; large-grained river pebbles The materials above the screen are sent to the vertical impact crusher (sand making machine) by the belt conveyor for further crushing and shaping. If clean river pebbles are needed, they can be sent to the sand washing machine for cleaning. The finely crushed river pebbles are transported by the belt conveyor. It is sent to the vibrating screen again for screening, thus forming a closed circuit for multiple cycles.

Feedback

The equipment configuration of the entire river pebble sand making production line is relatively reasonable. All equipment can reach ideal working conditions and there is no redundancy and waste. After the sand making process, the river pebble material has a better particle shape and a reasonable gradation. , sold very well.
