Product Description

The single-cylinder hydraulic cone crusher produced by our company is developed and produced by introducing international production technology and combining the special properties of my country's metal materials. Therefore, this equipment can meet the production needs of developing countries as crusher equipment and has high technology. structure, strong crushing capacity, safe and stable production capacity and low production and operation costs.

The single-cylinder hydraulic cone crusher lifts and lowers the movable cone through a single hydraulic cylinder, which can realize various functions of adjusting the discharge port, cleaning the cavity and overload protection; coupled with the electronic intelligent discharge port control system, more functions can be realized Automated production can be widely used in various industrial fields such as black, non-ferrous, non-metallic mines and sand and gravel materials.

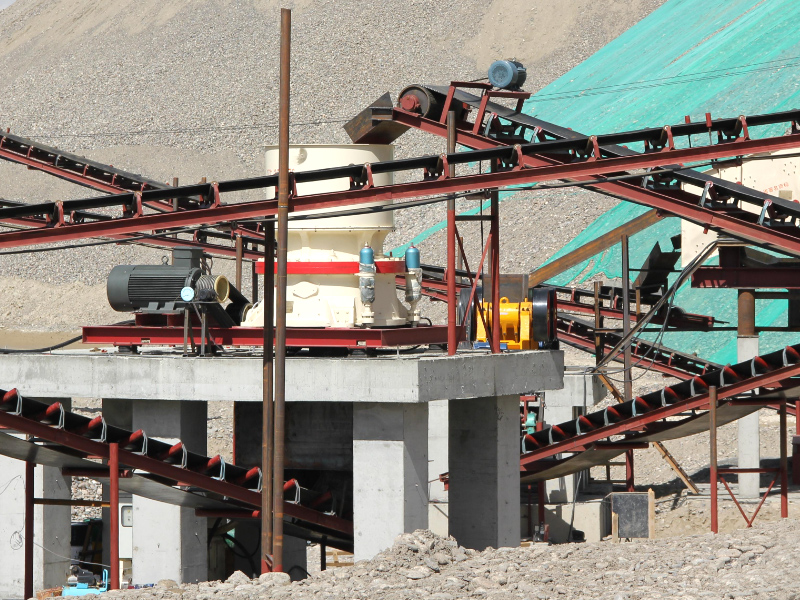

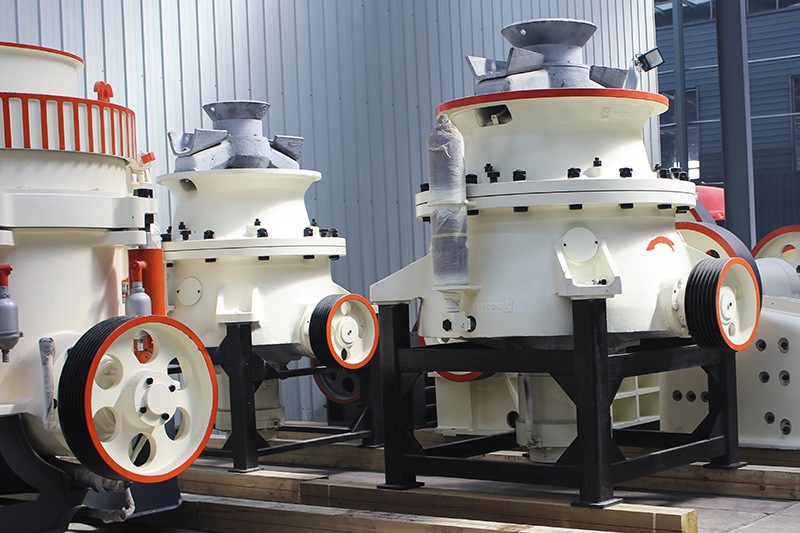

Single-cylinder hydraulic cone crusher on-site direct shot

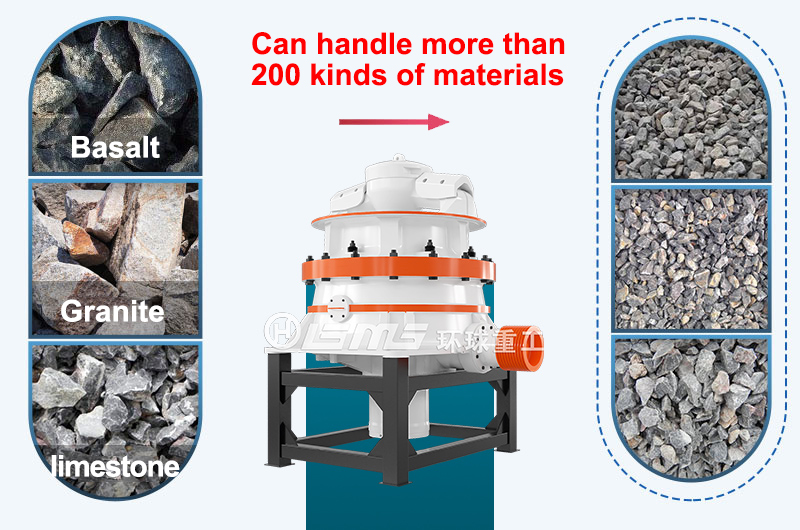

Product Performance

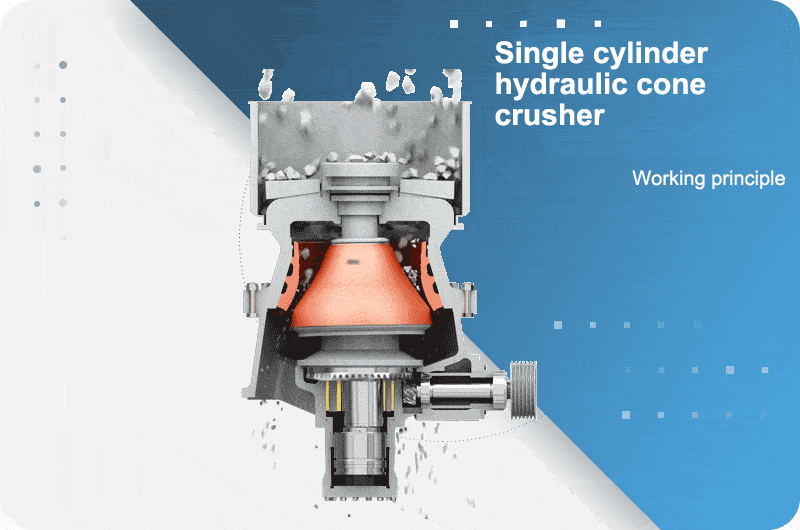

Working Principle

1. The motor drives the small gear of the single-cylinder hydraulic cone crusher, the small gear drives the large gear, and the large gear assembly (large gear, large gear frame, eccentric steel sleeve) drives the eccentric sleeve assembly (eccentric cylinder liner, eccentric copper sleeve) ) and the main shaft assembly (main shaft, inner cone, inner cone lining plate) are centered on the theoretical vertical line and revolve in the copper bushing. The main shaft assembly can rotate in the eccentric copper sleeve with the center line of the main shaft.

2. When the machine is running empty, the eccentric sleeve assembly "holds" the main shaft assembly and revolves with the large gear. When the material is added to the crushing chamber, the main shaft assembly (spindle, inner cone) moves under the resistance of the material. The eccentric copper sleeve rotates slowly.

3. The running trajectory of the inner cone seems to be swinging back and forth in the crushing cavity while rotating slowly. The material is squeezed and broken by the swinging inner cone, and the connection between the support sleeve and the frame body is pressed by the hydraulic cylinder.

4. When unbreakable objects such as metal blocks fall into the single-cylinder hydraulic cone crusher, the single-cylinder moving cone is lifted up by the hydraulic piston at the bottom to adjust the discharge port, protect the iron, and eliminate ore blockage by repeatedly rising and falling. role.
