Product Description

Large-diameter impact crusher is a commonly used crushing equipment. It crushes finer materials than jaw crusher and feeds larger materials than ordinary impact crusher. The super large feed port can feed stones with a length of up to 500mm, and crush ores below 350 MPa, such as limestone, gangue, coke, sandstone, etc. The feed is large, the discharge is fine, the crushing ratio is large, and the finished product has a good particle shape.

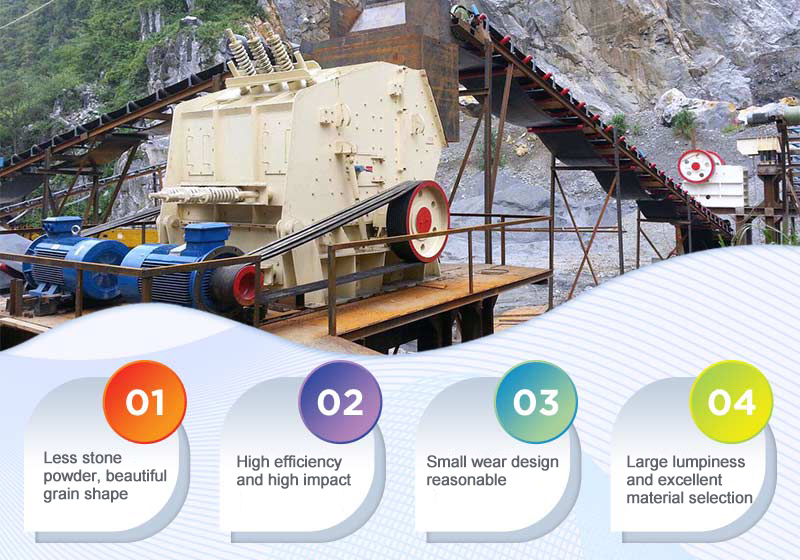

Product Performance

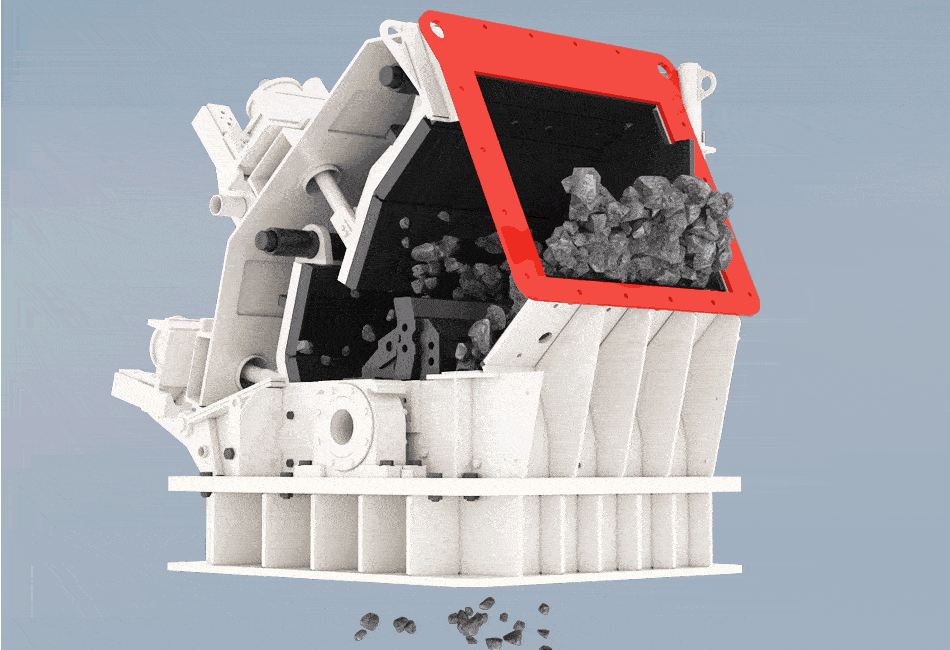

Working Principle

The impact crusher uses the impact energy generated when the rotor rotates at high speed to mechanically crush the materials to be processed that enter the crushing cavity.

After the power is turned on, the motor starts to work, and the rotor is accelerated by the motor through the V-shaped belt until the rotor maintains a stable high-speed rotation state (different models have different rotor speed settings), and the ore is driven by the feed port Entering the impact crushing cavity, it will collide with the high-speed rotating rotor during the falling process, and obtain huge reverse kinetic energy from the collision process. It will hit the impact plate in a high-speed parabolic motion, and then be bounced back by the impact plate and rotate at high speed. The hammer head makes a secondary impact and crushing. The material is fully crushed by repeated impact back and forth in the impact crushing cavity, and is smoothly discharged from the discharge port of the equipment.

Technical Parameters
