Product Description
Belt conveyor is a kind of equipment used for material transportation. It is a conveyor belt made of rubber, polyester fiber, nylon and other materials. It is covered with a layer of anti-tear and wear-resistant rubber or plastic and has high strength. , wear-resistant, waterproof, oil-resistant, anti-static and other characteristics.
Belt conveyors are mainly composed of conveyor belts, driving devices, elastic components, supports and rollers, conveyor belt tensioners, reducers and other components. Among them, the conveyor belt is the core component of the belt conveyor, which plays the role of transferring materials.
Belt conveyor function
1. Transport materials from one place to another. It can convey various types of materials, such as raw materials, semi-finished products, finished products, etc. 2. Help enterprises improve production efficiency. Due to its high degree of automation, it can greatly reduce the waste of manpower and time, thus improving production efficiency.
Product Performance
- 1High standard configuration
High-quality raw materials and reliable design provide sufficient equipment strength and durability for SC jaw crusher to crush super-hard materials performance and reduced maintenance costs.
- 2High-quality casting and forging ensures reliable performance of the equipment
Core rotating components such as high-quality casting movable jaw body, heavy-duty forged eccentric shaft with large eccentricity, high-rotation The inertial cast flywheel and high-strength integral cast steel bearing box, strong power and reasonable equipment speed ensure stable production of the equipment.
- 3Easy to maintain and improve equipment operation rate
The equipment uses centralized grease lubrication, and can be equipped with a manual or automatic grease lubrication system as needed to reduce the difficulty of maintenance.
- 4Original parts supply, worry-free operation
We are responsible for every piece of equipment we produce and provide customers with technology throughout the product life cycle Services and original parts supply services ensure that every customer has worry-free production
Working Principle

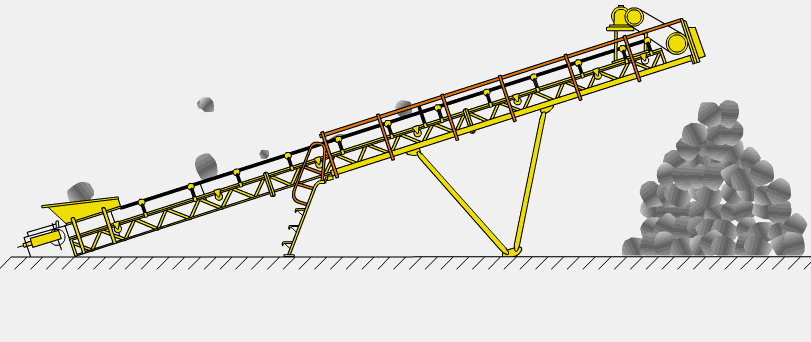

The belt conveyor is mainly composed of two endpoint rollers and a closed conveyor belt tightly sleeved on them. The roller that drives the conveyor belt to rotate is called the driving roller (transmission roller); the other roller that only changes the direction of movement of the conveyor belt is called the redirecting roller. The driving drum is driven by an electric motor through a reducer, and the conveyor belt is dragged by the friction between the driving drum and the conveyor belt. The driving roller is generally installed at the discharge end to increase traction and facilitate dragging. Materials are fed from the feed end and landed on the rotating conveyor belt, and are transported to the discharge end by friction of the conveyor belt for discharge.
Technical Parameters
| Tape width | Conveying length/power (m) / (kw) | Conveying speed (m/s) | Conveying Quantity (t/h) | ||
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/4-7.5 | 1.3-1.6 | 40-80 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 60-150 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-540 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-22 | 1.3-2.0 | 430-850 |
| B1200 | ≤10/7.5 | 10-20/7.5-15 | 20-40/15-30 | 1.3-2.0 | 655-1280 |
| B1400 | ≤10/11 | 10-20/11-22 | 20-40/22-45 | 1.25-2.0 | 400-680 |
| B1600 | ≤10/15 | 10-20/22-30 | 20-50/30-75 | 1.25-2.0 | 600-1080 |
