Product Description

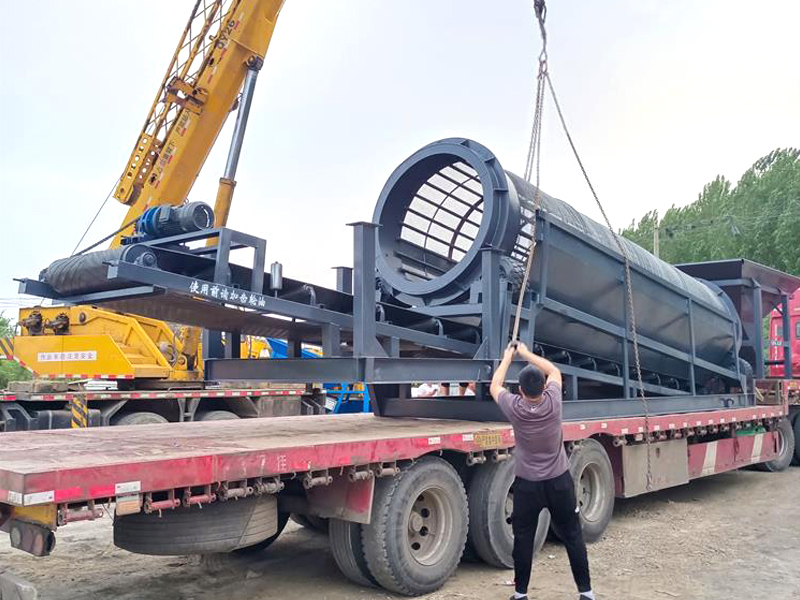

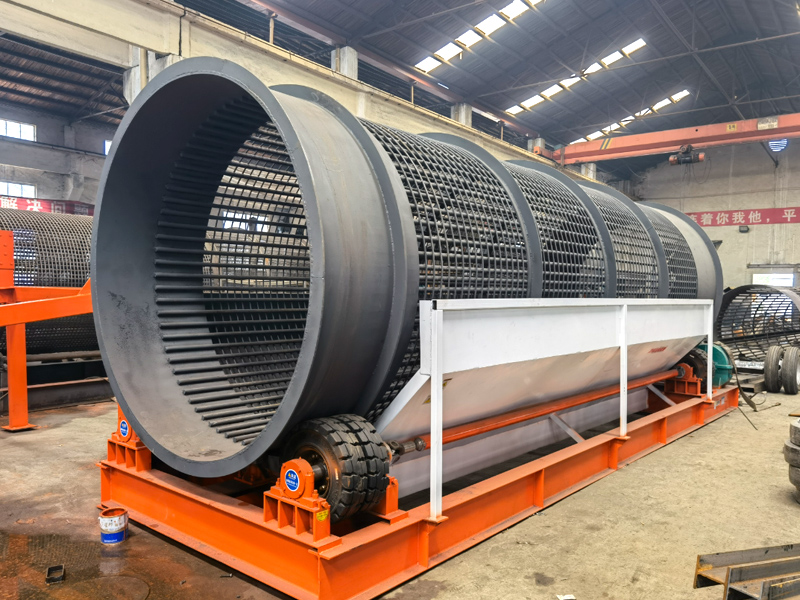

The trommel screen is a widely used machine in sorting technology. It controls garbage sorting by controlling the particle size, and has high sorting accuracy. The cylinder of the trommel screen is generally divided into several sections, depending on the specific situation. The sieve holes are arranged from small to large, and the sieve holes on each section have the same diameter.
The trommel screen mainly consists of motor, reducer, drum device, frame, sealing cover, and inlet and outlet.
Product Performance
- 1Larger processing capacity
Compared with single-spiral sand washing machine equipment, the outstanding advantages of double-spiral sand washing machine are higher efficiency and higher output. Large, etc., can handle materials within 0-30mm.
- 2The structure is more reasonable
The equipment is mainly composed of a tank body, a reducer, a motor, a central shaft, a spiral blade, and a bracket. The rotor of the equipment adopts a central Structure, the spiral blades are installed on the central shaft, and a reducer is connected to the central shaft to work.
- 3Can perform in good condition
The double-spiral sand washing machine is high-yield, energy-saving, economical and environmentally friendly. The reasonable transmission design ensures output while greatly reducing all costs. Requires power.
- 4Longer service life
The double-spiral sand washing equipment has a reasonable structure, large processing capacity and high cleaning degree, which is conducive to ensuring the high quality of finished sand. , at the same time, the loss of medium and fine sand is small, and the raw materials are not wasted. In particular, the transmission part is isolated from water and sand, without wear and tear, and the equipment has a long service life.
Working Principle
The roller device is installed obliquely on the frame. The motor is connected to the drum device through the reducer through a coupling, and drives the drum device to rotate around its axis. When the material enters the drum device, due to the tilt and rotation of the drum device, the material on the screen surface is flipped and rolled, so that the qualified material (screened products) is discharged through the outlet at the bottom of the rear end of the drum, and the unqualified material (screened product) The upper product) is discharged through the discharge port at the rear of the drum. Due to the flipping and rolling of materials in the drum, materials stuck in the screen holes can be ejected to prevent the screen holes from being blocked.
Technical Parameters
| Model | Output (m³/h) | Power (kw) | |
| Mesh opening (2mm) | Mesh opening (30mm) | ||
| YTS1230 | 12 | 100 | 5.5 |
| YTS1240 | 14 | 120 | 5.5 |
| YTS1250 | 15 | 140 | 5.5 |
| YTS1530 | 18 | 150 | 5.5 |
| YTS1540 | 18 | 150 | 7.5 |
| YTS1550 | 20 | 180 | 11 |
| YTS1560 | 22 | 200 | 11 |
| YTS2040 | 25 | 250 | 15 |
| YTS2050 | 30 | 300 | 15 |
| YTS2060 | 35 | 350 | 18.5 |
